TM1834 Fixed Pattern 6-Channel LED Meteor Shower Display Driver IC

TM1834 Fixed Pattern 6-Channel LED Meteor Shower Display Driver IC

The TM1834 is a 6-channel LED driver IC designed specifically to create meteor shower or raindrop effects for decorative lighting applications. With an integrated oscillator and PWM output, it provides grayscale fading to control the LEDs in a sequential cycle, simulating flowing effects such as meteors or raindrops. After power-up and reset, the chip begins generating PWM waveforms to control the LEDs across all 6 channels, achieving the desired dynamic effects. The integrated 5.5V voltage regulator ensures stable performance, and the design requires minimal external components, making it ideal for use in various LED decorative lighting applications. With reliable performance and ease of use, the TM1834 is an excellent choice for creating eye-catching visual effects with LED lights.

Key Features of TM1834:

• CMOS Technology: Built using CMOS technology to provide reliable, low-power, and efficient performance in all lighting applications.
• Built-in 5.5V Voltage Regulator: The VDD pin integrates a 5.5V voltage regulator, simplifying the power design and reducing the need for external components.
• 6-Channel Output Ports: Equipped with 6 independent output channels for controlling multiple LEDs, enabling the creation of complex dynamic effects such as meteor showers, raindrops, and other flowing light patterns.
• PWM Grayscale Control: The chip offers PWM grayscale control for each channel, providing smooth brightness transitions and ensuring accurate control over the LED output.
• Integrated Oscillator: The internal oscillator automatically begins generating PWM waveforms after the chip is powered on, eliminating the need for external clock sources.
• Power-On Reset Function: On power-up, the chip automatically resets, initializing all registers and ensuring the system starts in a stable state.

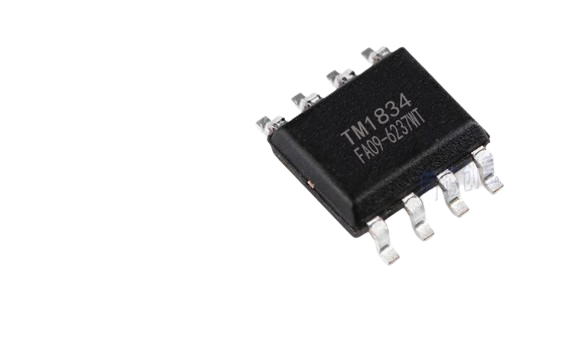

• Compact Packaging: Available in a SOP8 package, providing a compact form factor for easy integration into space-constrained designs.

Applications:

The TM1834 is ideally suited for use in a variety of LED decorative lighting and display applications, including:

• Meteor Shower and Raindrop Effects: Perfect for creating meteor shower or raindrop lighting effects in both indoor and outdoor environments.
• LED Strips and Decorative Lights: Ideal for use in LED strips, LED point light sources, and other decorative lighting solutions where flowing or dynamic light patterns are desired.
• Outdoor and Indoor Signage: Used for creating animated or dynamic lighting effects for signage and advertisements, adding an eye-catching visual element to any display.
• Event Lighting: Suitable for event lighting, stage effects, and theatrical lighting where dynamic, flowing light effects are needed to enhance the atmosphere.

Why Choose TM1834 for Your LED Lighting Projects?

The TM1834 provides an easy and efficient way to create dynamic LED display effects. With its 6-channel output, PWM grayscale control, and built-in voltage regulator, this IC simplifies the design of meteor and raindrop effects, saving time and reducing component count. The internal oscillator and automatic power-on reset make the chip easy to integrate and operate, while its CMOS technology ensures low power consumption and reliable performance. Whether you’re designing lighting for outdoor displays, stage lighting, or decorative effects, the TM1834 offers the flexibility and performance you need.
