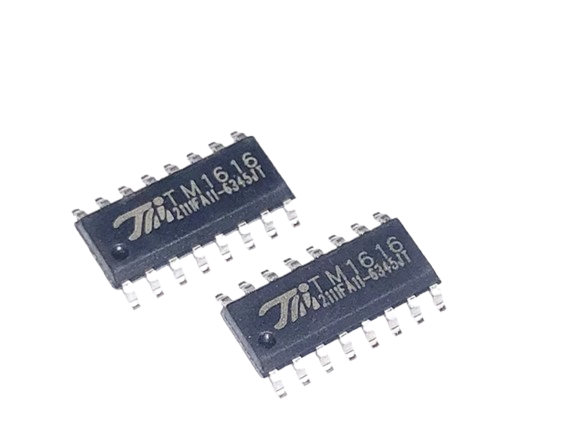

✅ Model: TM1616
Brand: Titan Micro Electronics
Category: LED Display Driver IC / Segment Display / Consumer Electronics
📄 Product Description
The TM1616 from Titan Micro Electronics is a versatile LED display driver IC widely used in consumer electronics such as VCRs, VCDs, DVD players, and home theater systems. It supports 7-segment × 4-digit displays with independent segment control, offering clear and stable visual performance.
Built with advanced CMOS technology, the TM1616 integrates an 8-level adjustable brightness control, a built-in RC oscillator, power-on reset, and an optimized circuit that prevents LED reverse leakage dimming. Its serial interface (CLK, STB, DIN) ensures easy connectivity with microcontrollers and digital circuits.
With SOP20 and DIP16 package options, the TM1616 is suitable for compact designs and delivers excellent performance in home appliances, display panels, and control systems.
📐 Technical Specifications
| Item | Description |
|---|---|
| Brand | Titan Micro Electronics |
| Display Mode | 7-segment × 4-bit |
| Brightness Control | 8-level adjustable duty ratio |
| Interface | Serial (CLK, STB, DIN) |
| Oscillator | Built-in RC oscillator (450kHz ±5%) |
| Features | Power-on reset, reverse leakage prevention |
| Package | SOP20 / DIP16 |
🎯 Key Applications
-
Consumer Electronics
-
LED Display Panels
-
Home Appliance Control
-
Industrial Display Systems
🔗 Datasheet / Product Page
Download TM1616 Datasheet
📢 Note
At Newfly Electronic, we sell a wide range of Titan Micro Electronics products (also known in the market as Titan Micro or Titan Electronic), including the TM1616 LED driver IC. We offer competitive pricing, fast delivery, and global shipping. Contact us for stock details and quotations!
