✅ Full Product Description

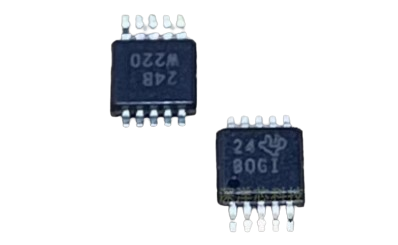

Model: ADS1113 / ADS1114 / ADS1115
Package Options: X2QFN-10 / SOT-10 / VSSOP-10
More models are available upon request. Please contact us for details.
The ADS1113 / ADS1114 / ADS1115 series from Texas Instruments (TI) are precision, low-power 16-bit analog-to-digital converters (ADCs) with an I²C-compatible interface. These devices feature a low-drift voltage reference, internal oscillator, and wide operating voltage range, making them ideal for high-resolution measurements in space- and power-constrained sensor systems.
-
ADS1113: Base version with fixed input and simple I²C control
-
ADS1114: Adds a programmable gain amplifier (PGA) and digital comparator
-
ADS1115: Includes PGA and a multiplexer (MUX) supporting two differential or four single-ended inputs
These ADCs support data rates up to 860 samples per second (SPS) and provide excellent performance across a wide range of input voltages thanks to the PGA’s input range from ±256mV to ±6.144V. The digital comparator in ADS1114 and ADS1115 enables under-voltage and over-voltage detection for safety or threshold applications.
Available in compact X2QFN-10, SOT-10, and VSSOP-10 packages, the ADS111x series is well-suited for use in portable or embedded sensor applications that demand high accuracy, small form factor, and low power consumption.
✅ Applications
-
Portable Instrumentation
-
Industrial Sensors
-
Environmental Monitoring
-
Battery Monitoring
-
Medical Devices
-
Data Acquisition Systems
-
IoT Sensor Nodes
✅ Technical Highlights
-
Resolution: 16 bits
-
Interface: I²C-compatible
-
Sampling Rate: Up to 860 SPS
-
Wide Input Range via PGA: ±256mV to ±6.144V
-
Integrated Voltage Reference and Oscillator
-
PGA and Digital Comparator (ADS1114, ADS1115 only)
-
MUX (ADS1115 only): 2 differential or 4 single-ended inputs
-
Supply Voltage: 2.0V to 5.5V
-
Package Options: X2QFN-10, SOT-10, VSSOP-10
-
Operating Temp: -40°C to +125°C
