STMicroelectronics L78M Series — 0.5 A Positive Voltage Regulators

Description

The STMicroelectronics L78M series is a reliable three-terminal positive voltage regulator available in various fixed output voltages. Designed for local on-card voltage regulation, it helps eliminate distribution issues. With built-in thermal and short-circuit protection, it ensures robust operation in harsh conditions, providing output currents up to 0.5 A when adequately heat-sinked. These regulators can also be used with external components for adjustable voltage applications.

Features

• Output current up to 0.5 A

• Fixed output voltages: 5 V, 6 V, 8 V, 9 V, 10 V, 12 V, 15 V, 24 V

• Internal thermal overload protection

• Short-circuit protection

• Output transition Safe Operating Area (SOA) protection

• Output voltage tolerance:

  • ±2% (AB and AC versions)

  • ±4% (C version)

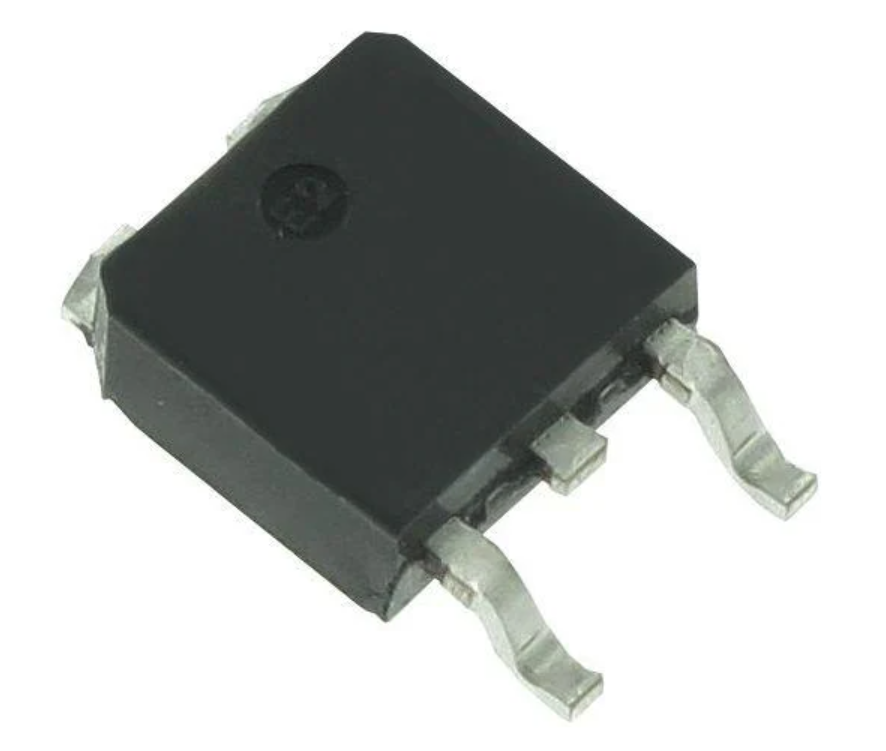

• Available in TO-220, TO-220FP, DPAK, and IPAK packages

• Guaranteed performance over extended temperature ranges

Applications

• Consumer electronics

• Power supply for embedded systems

• Automotive and industrial applications

• On-card local voltage regulation
