Description:

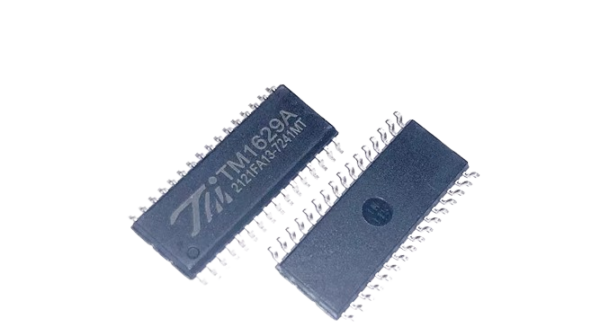

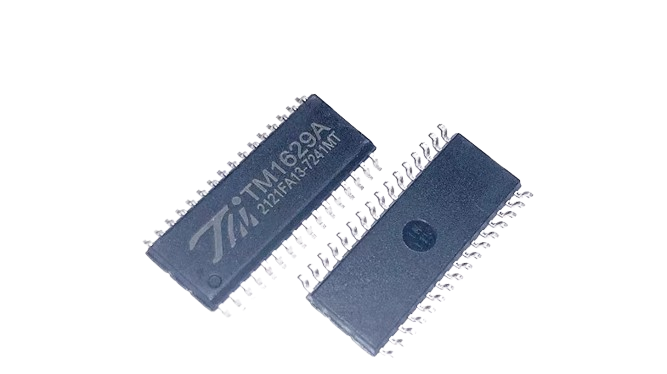

TM1629A is a high-performance LED driver control IC, designed for efficient display driving. It integrates several essential circuits, including an MCU digital interface, data latch, and LED high-voltage driver. Known for its low power consumption and reliable performance, this IC is ideal for a variety of display applications, including VCR, VCD, DVD players, home theater systems, and other digital display devices.
Key Features:
- Low Power Consumption CMOS Technology
- Display Mode: 16 segments × 8 positions
- Brightness Adjustment Circuit: 8-level adjustable duty cycle
- Serial Port: DIO, CLK, STB
- Built-in Oscillation Mode: RC oscillation (450KHz ±5%)
- Integrated Power-on Reset Circuit
- Data Latch Circuit: Internal design for stable performance
- Optimized Circuit for LED Reverse Leakage Brightness Issues
- Strong Anti-Interference Ability
- Packaging: SOP32
Applications:
Mainly used for display drives in devices such as VCR, VCD, DVD players, home theater systems, and other similar digital display products.
